Wings, Marker Lights and Guns

Posted by Ken Bergquist | Jan 29, 2014 | Viper | 0 |

Wings, Marker Lights and Guns

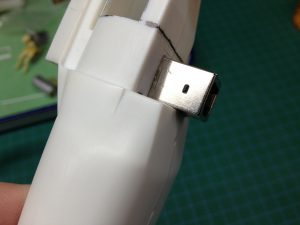

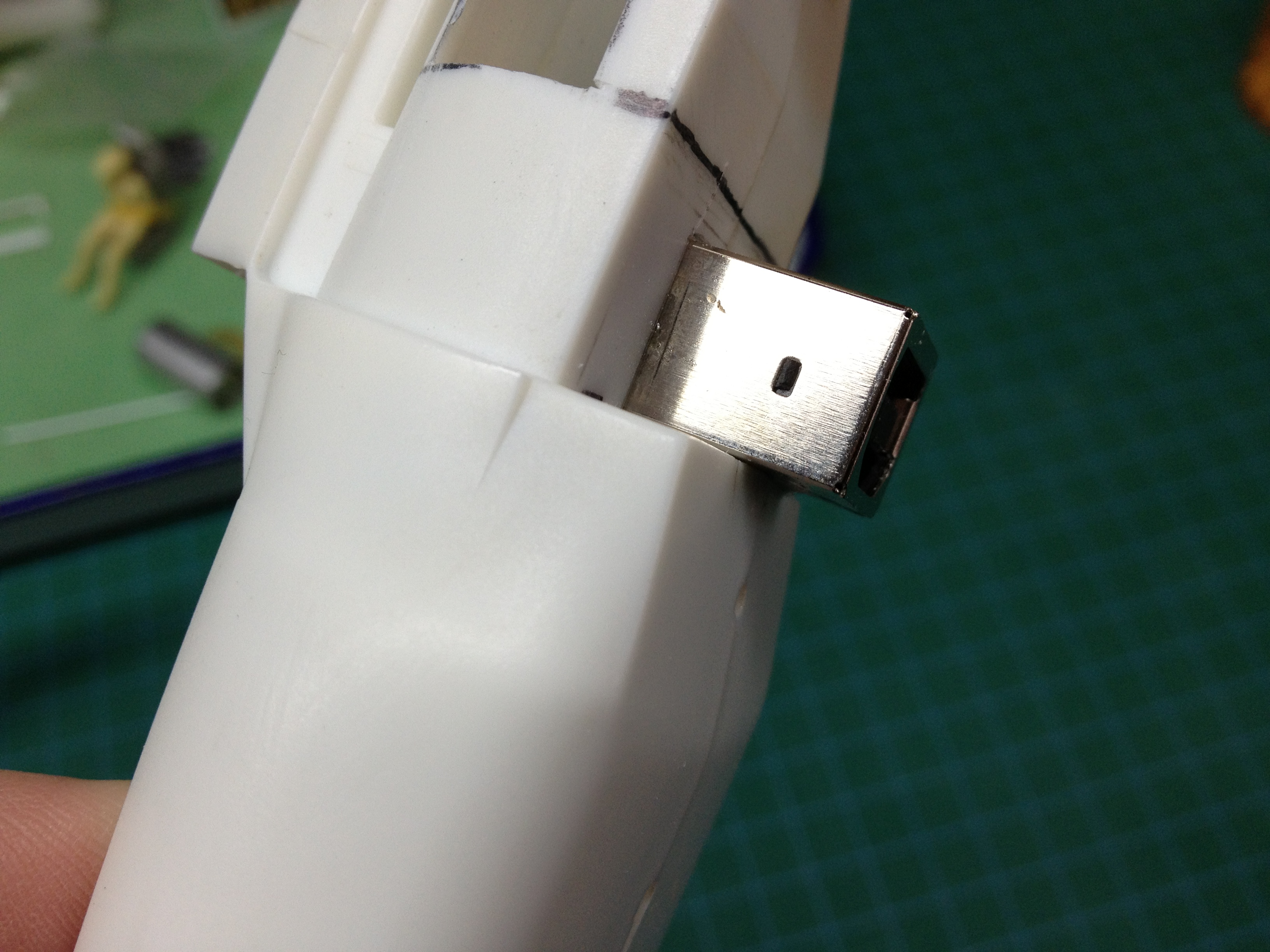

I'm using a USB B connector for power and mounting the model to its stand. Here you can see where it protrudes from the bottom of the fuselage.
  • facebook
I’m using a USB B connector for power and mounting the model to its stand. Here you can see where it protrudes from the bottom of the fuselage.

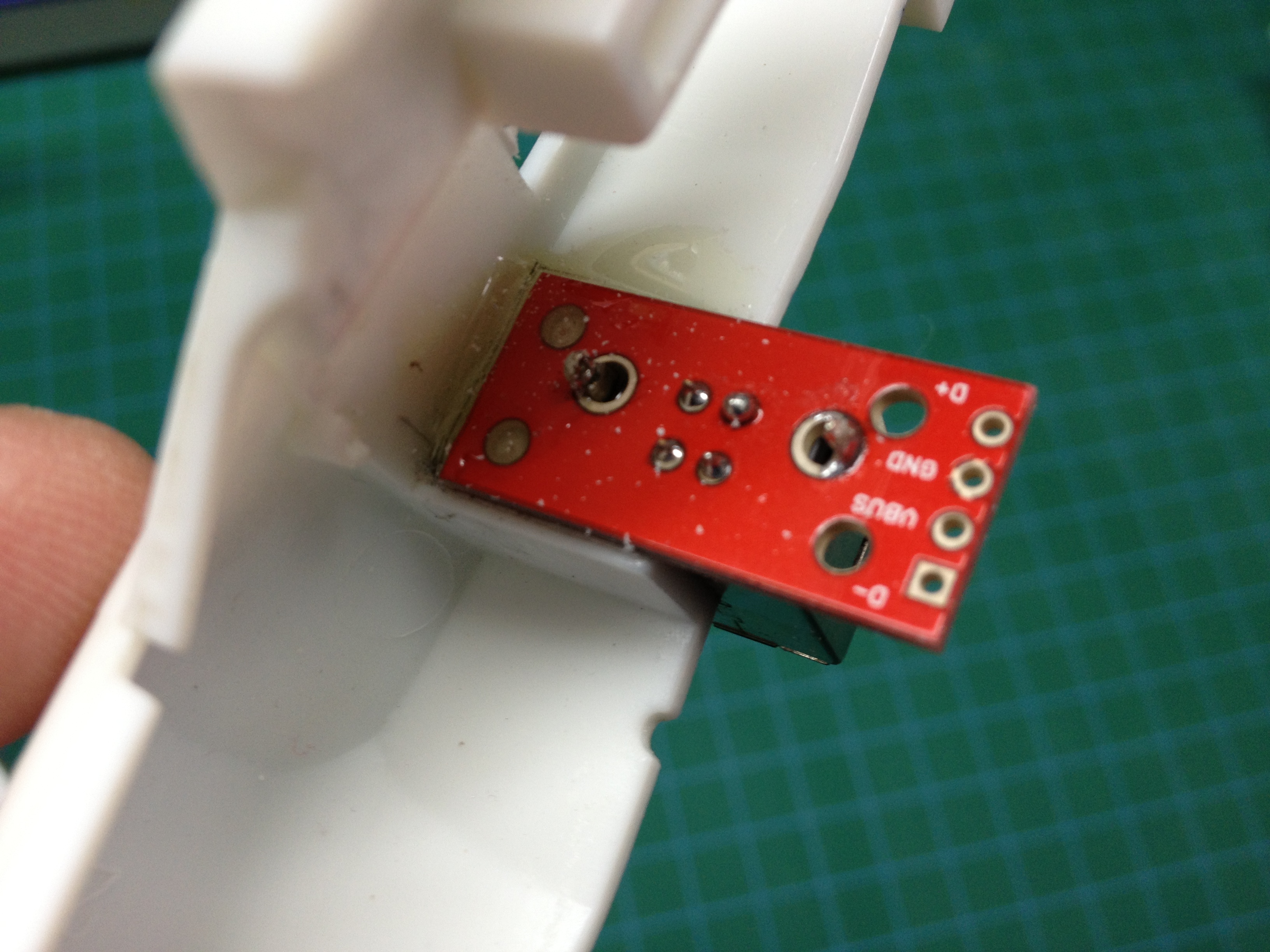

The USB B connector is epoxied into place. Power comes into the model from any USB power source (5v). The connector will double as a mount for the stand.
  • facebook
The USB B connector is epoxied into place. Power comes into the model from any USB power source (5v). The connector will double as a mount for the stand.

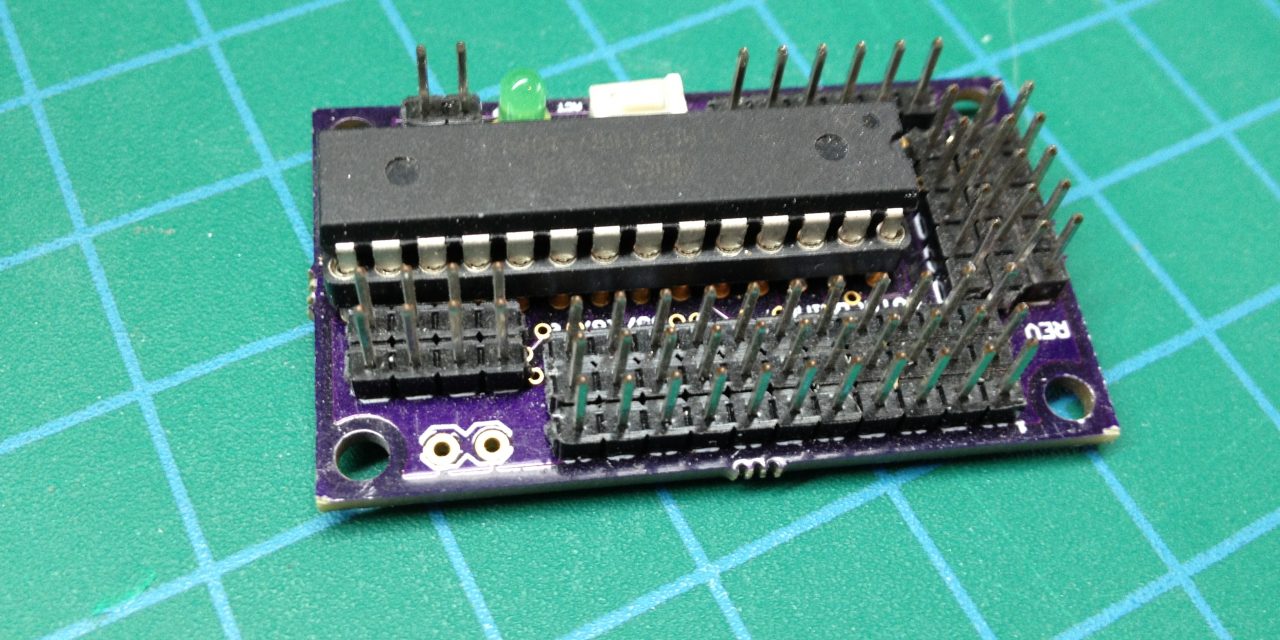

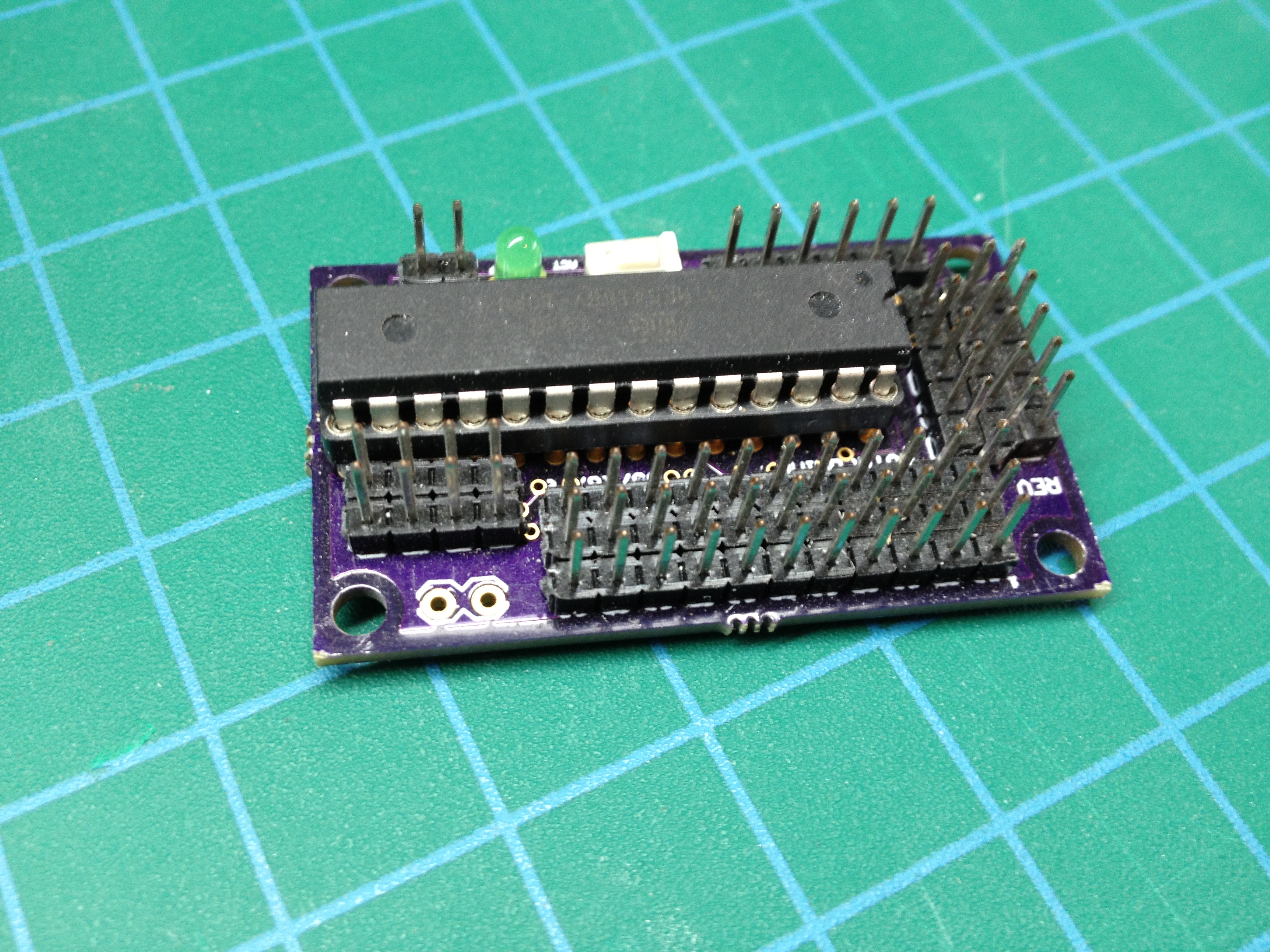

This is the brains of the operation. The board and circuit are open source hardware. The software that controls it is home-brewed.
  • facebook
This is the brains of the operation. The board and circuit are open source hardware. The software that controls it is home-brewed.

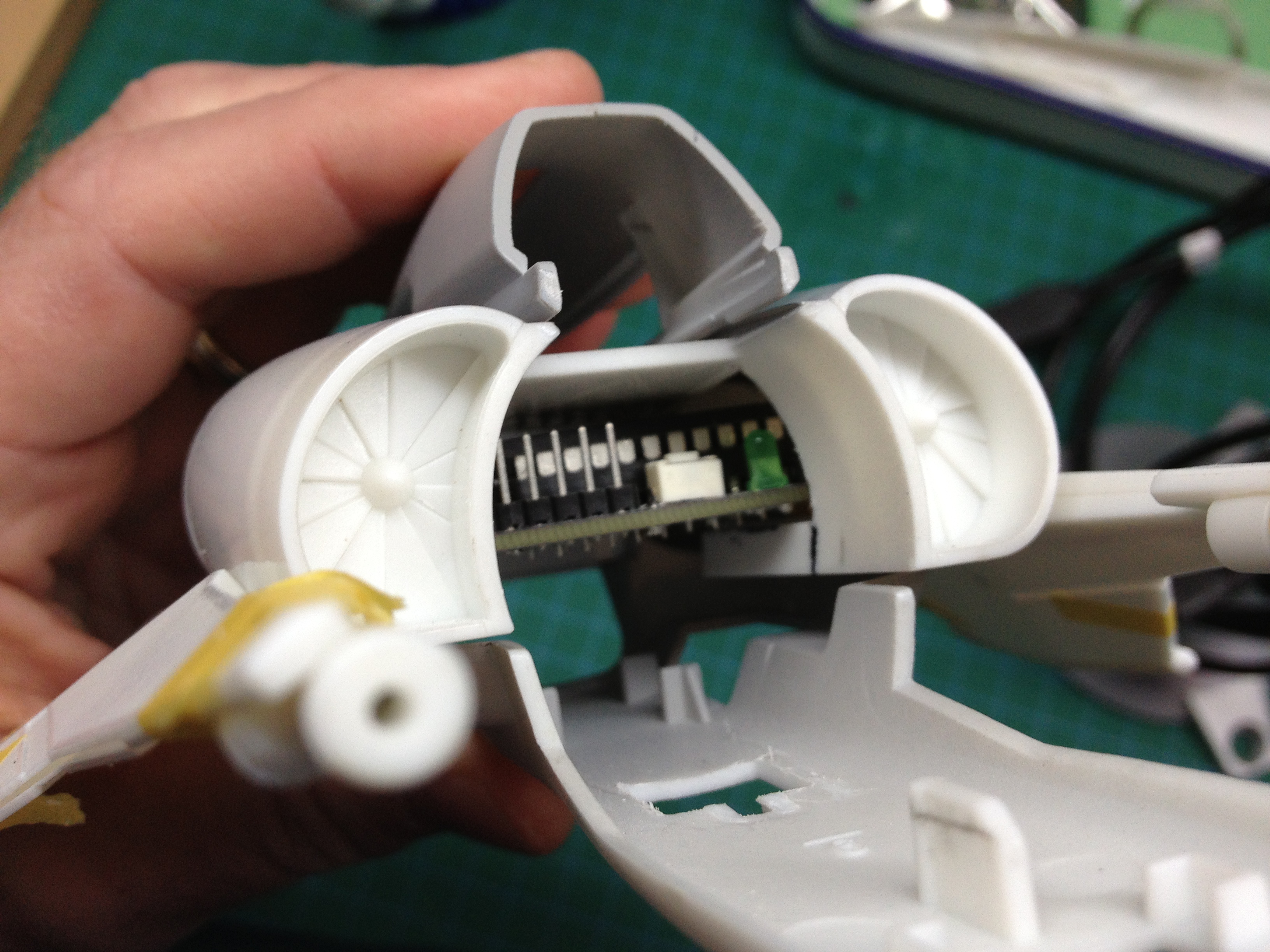

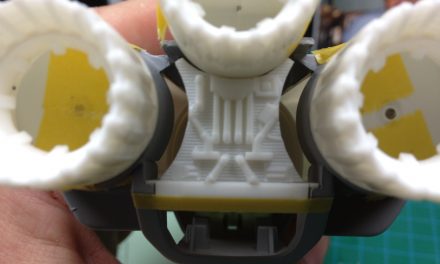

I've done considerable surgery to the area between the engines to fit everything inside, but it fits!
  • facebook
I’ve done considerable surgery to the area between the engines to fit everything inside, but it fits!

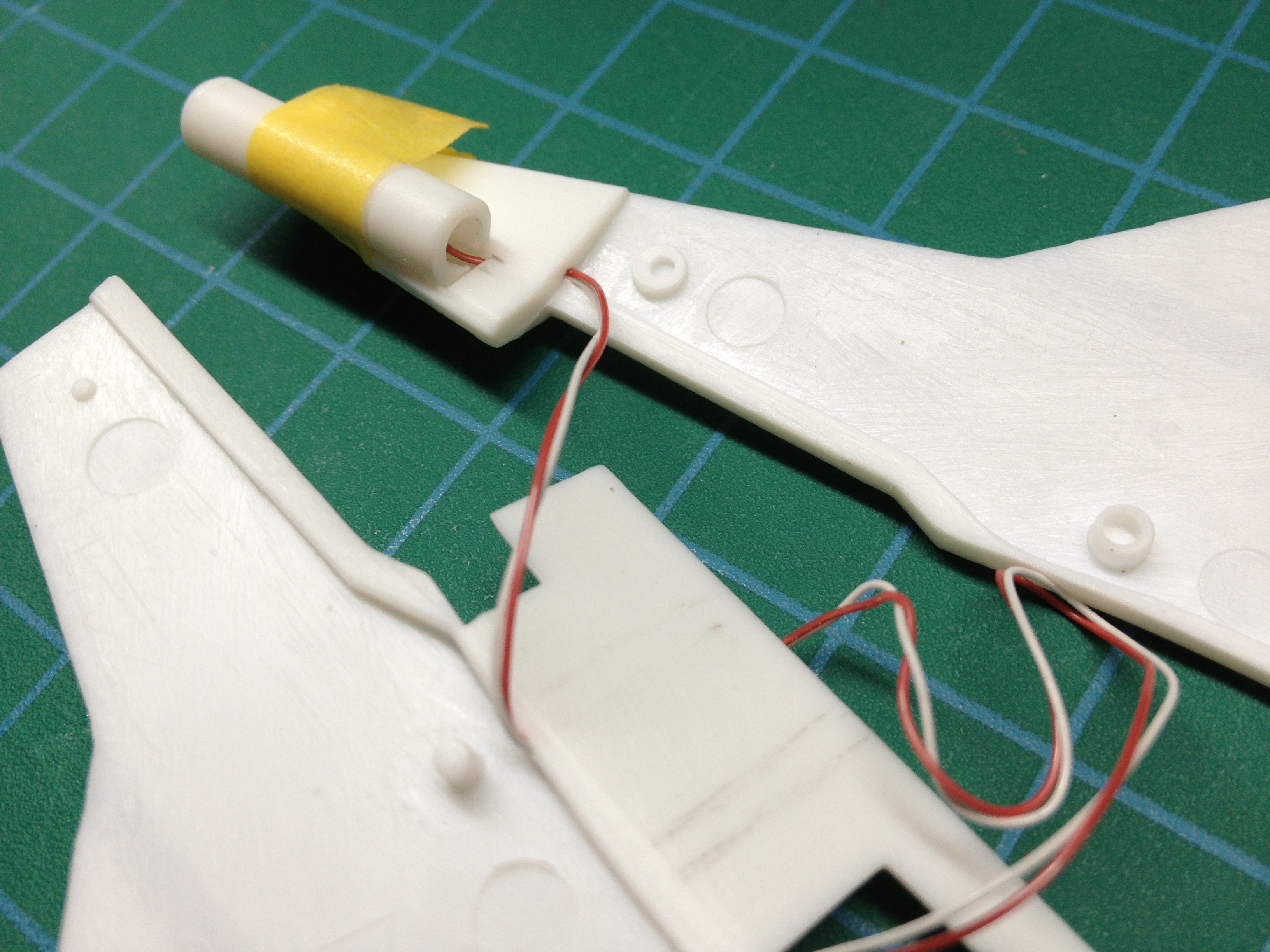

Here you can see the wire-wrap wire I use for connecting the LEDs to the circuit board.
  • facebook
Here you can see the wire-wrap wire I use for connecting the LEDs to the circuit board.

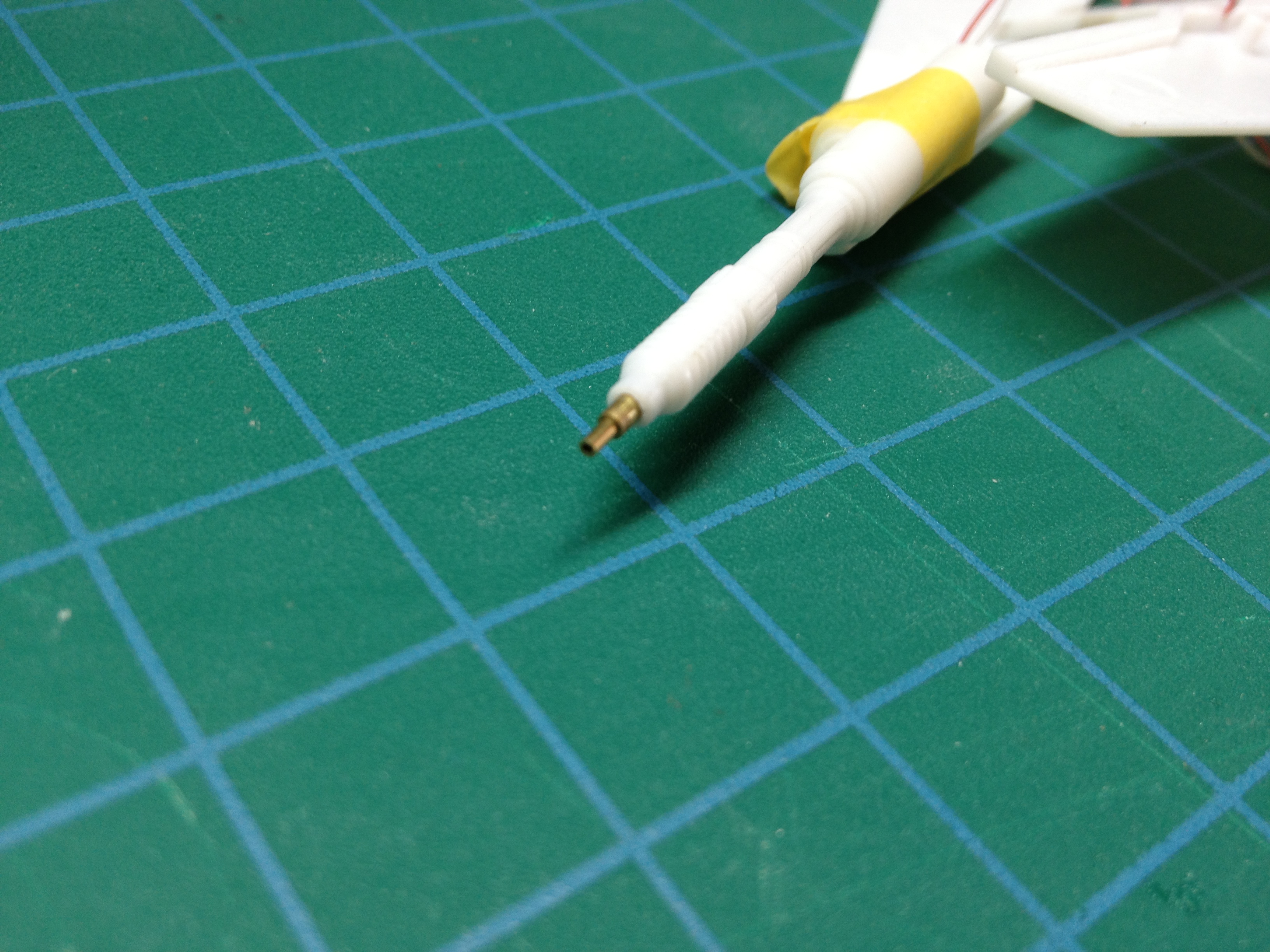

I'll be finishing off the gun detail with brass tubing, inserted through the kit parts which were drilled out to accommodate it.
  • facebook
I’ll be finishing off the gun detail with brass tubing, inserted through the kit parts which were drilled out to accommodate it.

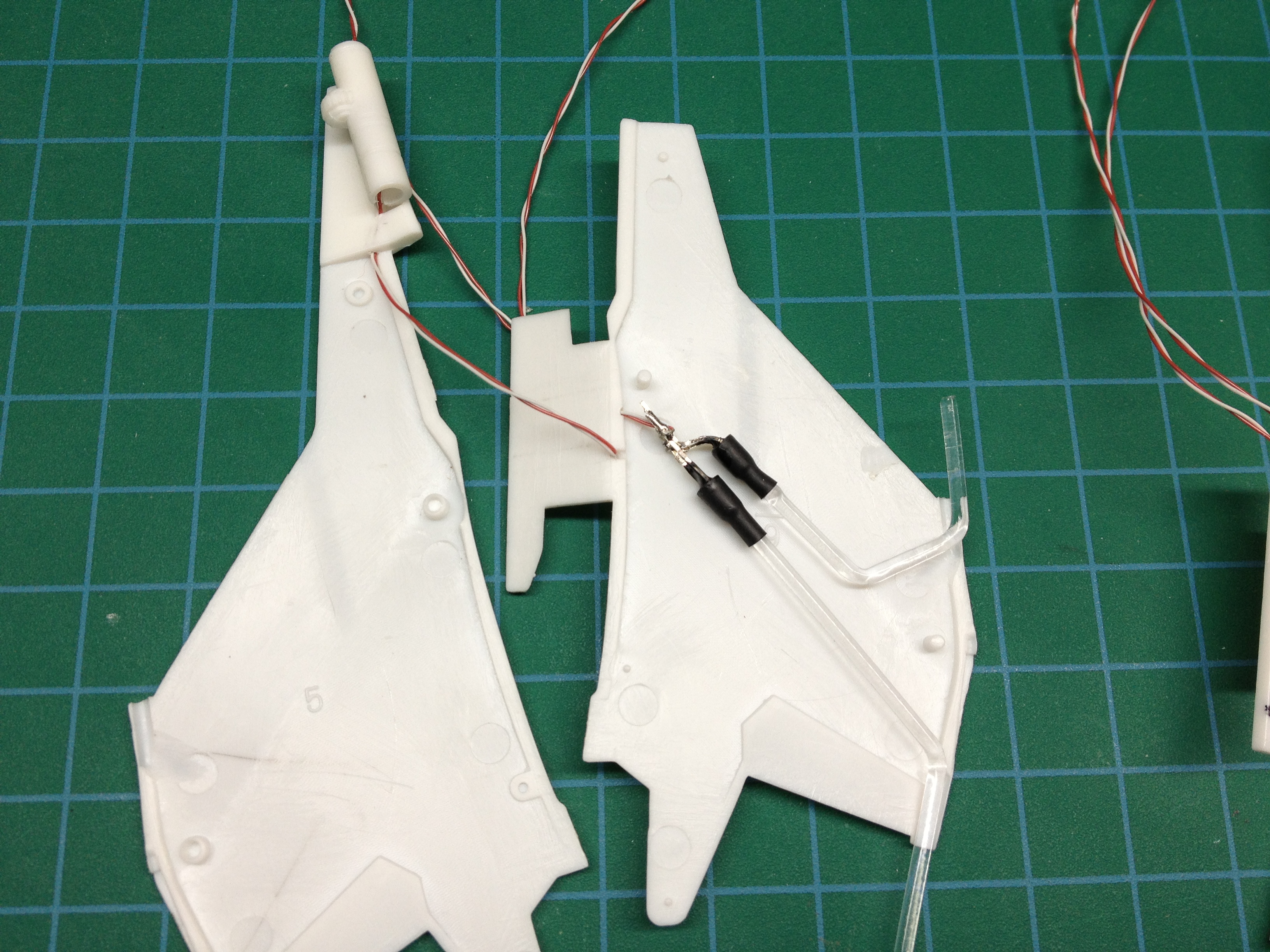

The light guides for the navigation lights are 2mm fiber optic, bent to fit inside the wings. Each fiber gets its own red LED.
  • facebook
The light guides for the navigation lights are 2mm fiber optic, bent to fit inside the wings. Each fiber gets its own red LED.

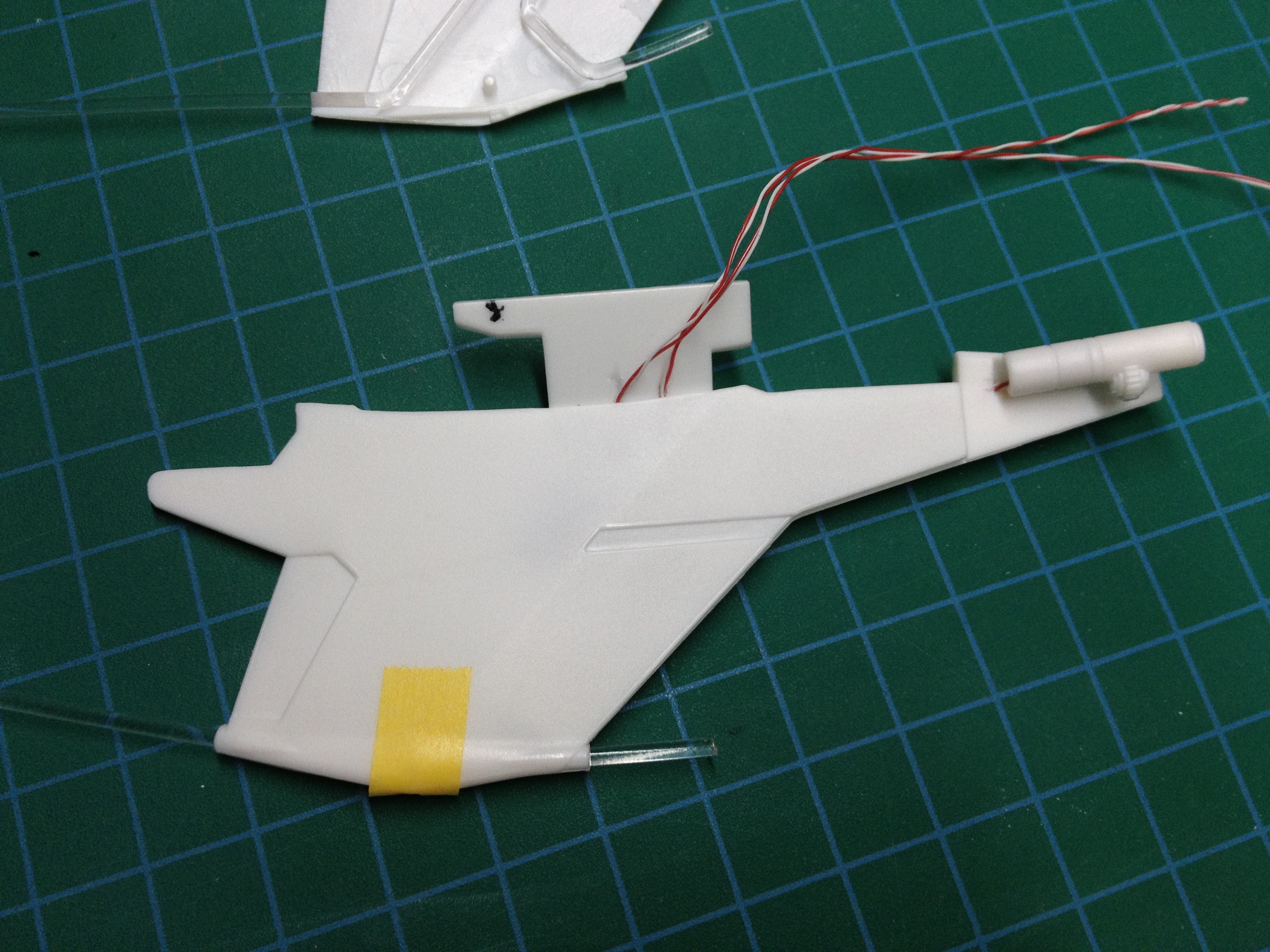

Here are the wings taped up with light guides in place, ready to cut to length.
  • facebook
Here are the wings taped up with light guides in place, ready to cut to length.
